MX-6707/VRC Vehicle Antenna Base

MX-6707/VRC - Antenna Base for Military Vehicles

The MX-6707/VRC is a mast base with an integrated antenna tuner designed for use on military vehicles.

It automatically tunes across 10 frequency segments using an internal electromagnetic switch that selects the appropriate setting based on the connected radio system.

Frequency control is managed by the AM-2060, RT-524/VRC, or RT-246/VRC radios and transmitted via the CX-4722 cable to the antenna base.

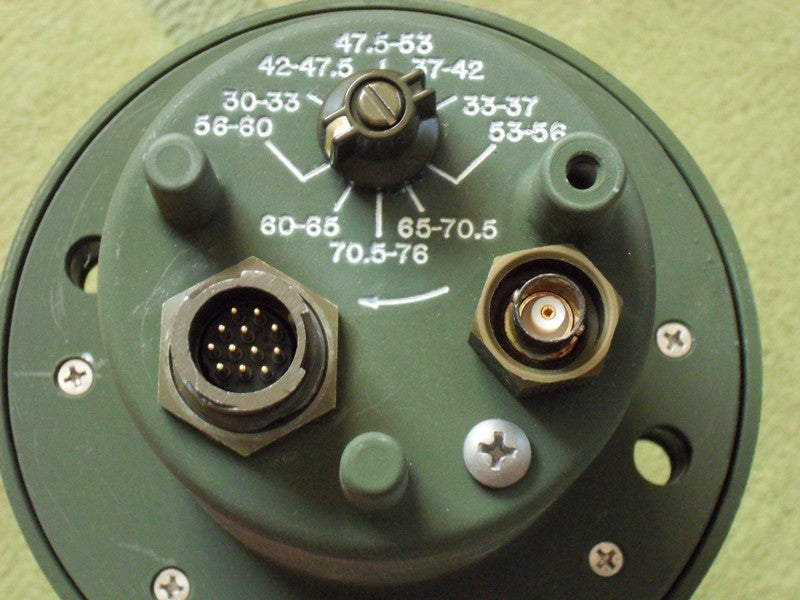

Manual tuning is also possible directly on the antenna base unit.

A flexible spring at the base allows the antenna to bend, preventing breakage under stress.

Key Features:

• Condition: New

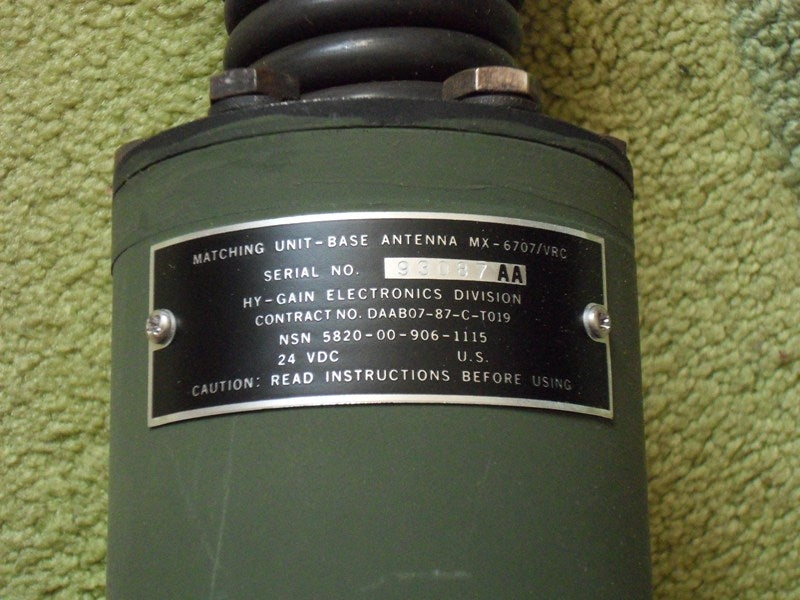

• NSN: 5820-00-906-115
